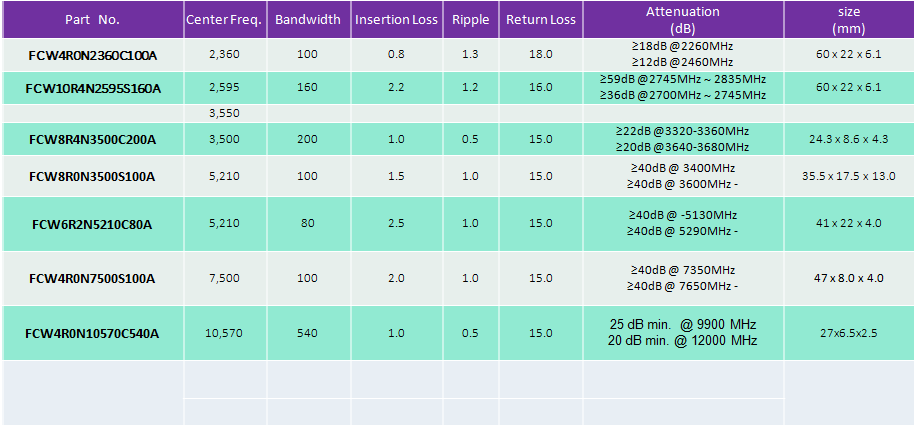

Ceramic Waveguide Filter

  • [Features]

    Notch Filters Available, Frequency Range (100KHz to 3GHz), Wide Bandwidth & High Rejection, Frequency flexibility, Low Cost & Costom design, Low insertion, High selectivity, Temperature stablity, SMD type.

    [Applications]

    Wireless communication system
    PCS,DCS,CDMA,GSM
    Wireless LAN

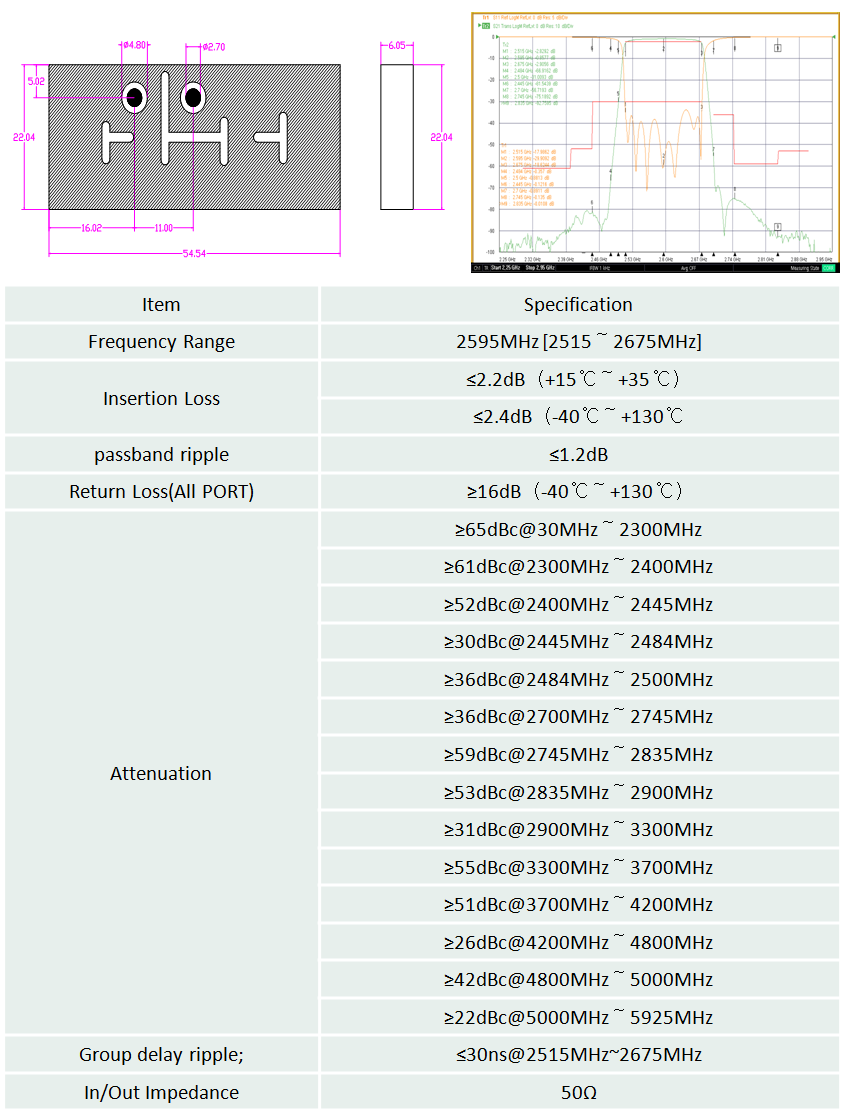

2.5GHz Ceramic waveguide Filter for 5G System

  • [Features]

    Cavity type ceramic waveguide Filter
    Low Insertion Loss
    High Rejection
    Based on ceramic dielectric materials technology
    SMD and reflow solderability
    SMA Connector possible

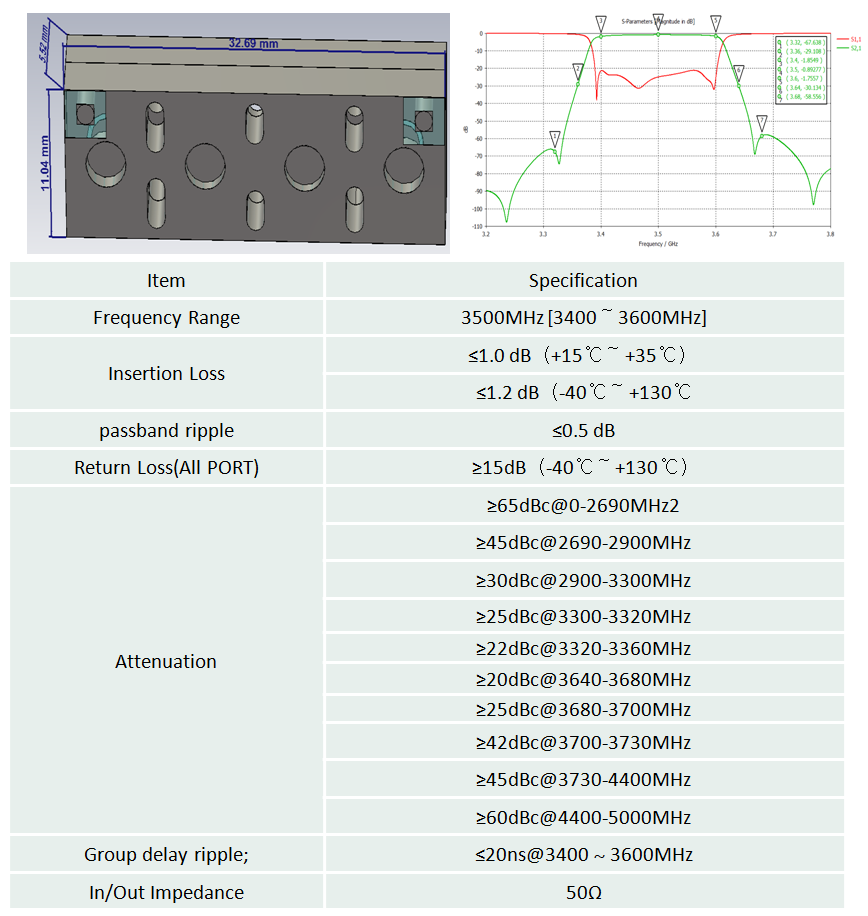

3.5GHz Ceramic waveguide Filter for 5G System

  • [Fetures]

    Stacked type ceramic waveguide Filter
    Low Insertion Loss
    High Rejection
    Based on ceramic dielectric materials technology
    SMD and reflow solderability
    SMA Connector possible
