Frontiers of Technological
Innovation for RF and Microwave Components.

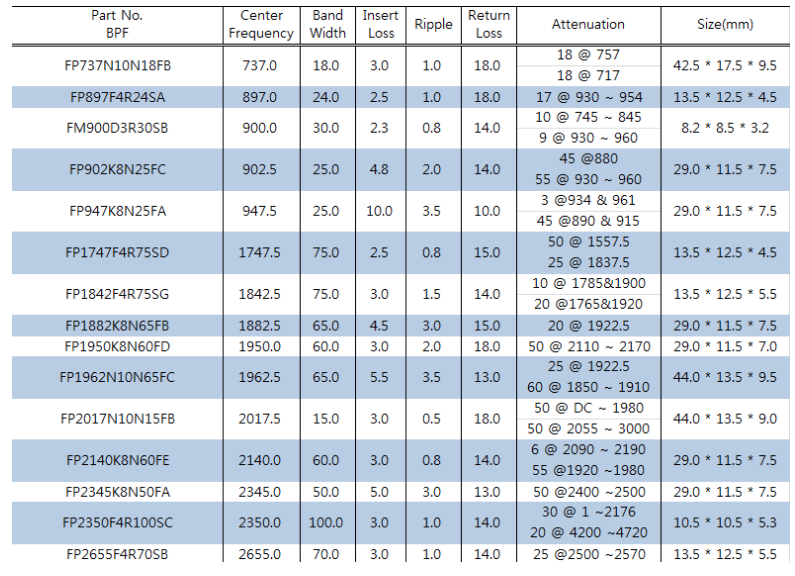

Mono-Block Filter

  • [Features]

    Low insertion loss by using high Q dieletric resonators Small and light with hign dielectric constant ceramics Excellent mechanical stability without vibratile structure Excellent temperature stability SMD and reflow solderability Available on assembly by SMT machine Frequency range:400~600Mhz Power range:1~30W

    [Applications]

    Base station & Repeater
    PCS system
    CDMA system
    DCS system
    GSM system
    W-CDMA system
    WLL system
    TRS system
    TD-SCDMA system

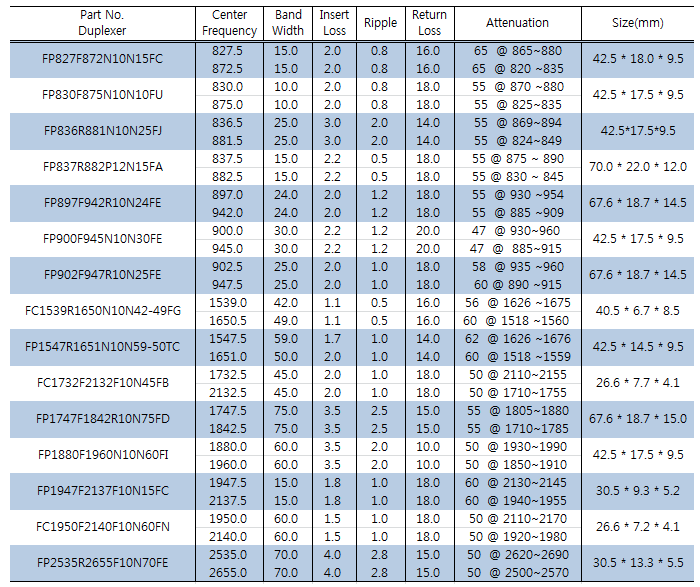

Mono-Block Duplexer

  • [Features]

    Low insertion loss by using high Q dieletric resonators Small and light with hign dielectric constant ceramics Excellent mechanical stability without vibratile structure Excellent temperature stability SMD and reflow solderability Frequency range:400~600Mhz Power range:1~30W

    [Applications]

    Base station & Repeater
    PCS system
    CDMA system
    DCS system
    GSM system
    W-CDMA system
    TRS system
    TD-SCDMA system
    MMDS system
